Setting Up Remote Application Server to work with ADFS as Identity Provider over SAML

Architecture & Prerequisites

1. Supported Scenario

Parallels RAS acts as the SAML Service Provider (SP), while AD FS acts as the Identity Provider (IdP). Users authenticate via a browser and are redirected back to Parallels RAS after successful authentication.

SAML authentication is browser based and therefore requires HTTP/HTTPS accessibility between the user, AD FS, and the RAS Secure Gateway.

2. Prerequisites Checklist

Before starting, ensure the following requirements are met:

---

Prepare Parallels RAS – Enrollment Services

1.  Add the Enrollment Server Agent

1. Open RAS Console

2. Navigate to Enrollment Servers

3. Click the + icon to add a new Enrollment Server agent

2. Configure AD Integration

In RAS Console → Enrollment Servers → AD Integration:

• Specify:

  • Certificate Authority
  • Enrollment Agent account
  • NLA user account

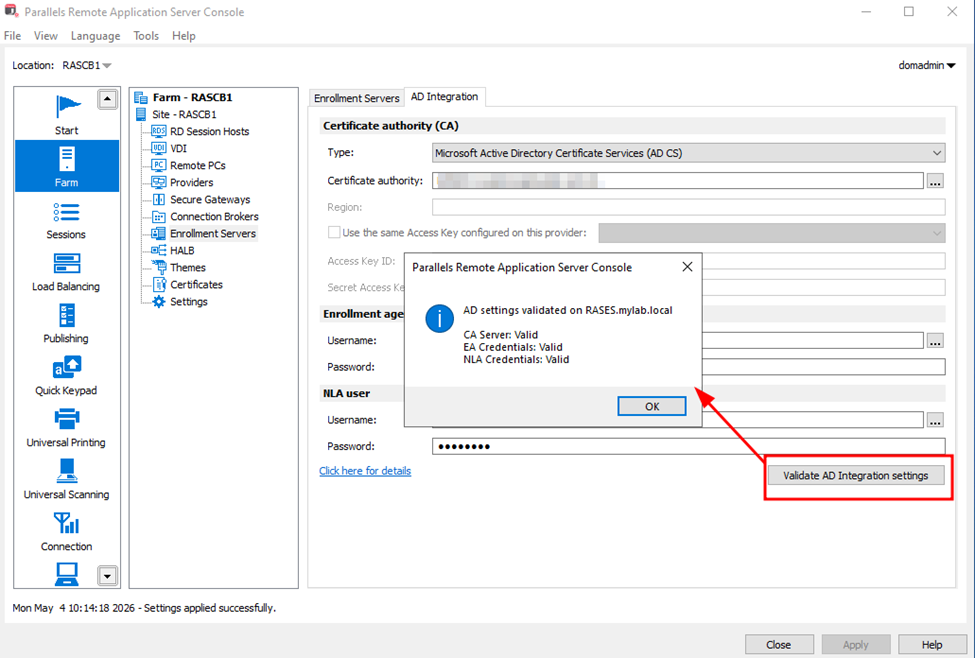

• Click Validate AD Integration settings

• If all checks pass:
  • Apply the settings

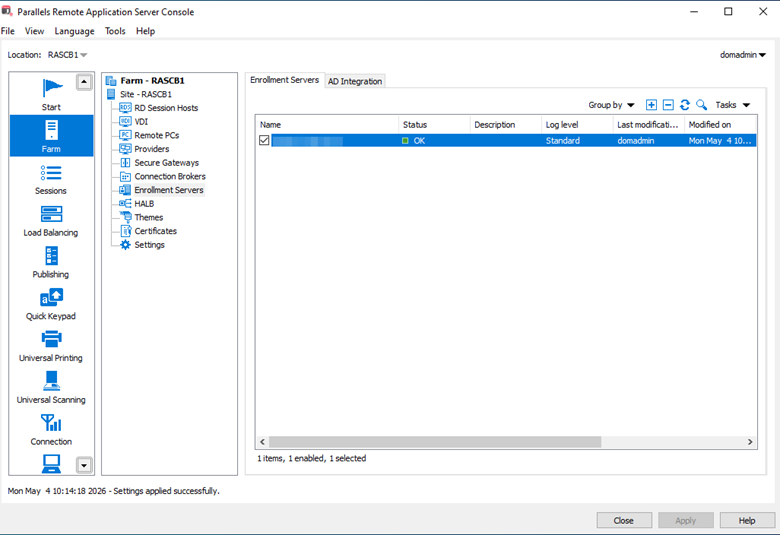

  • Confirm the Enrollment Server status is OK on the Enrollment Servers Tab



---

Create the Identity Provider in Parallels RAS

At this stage, RAS is prepared to act as a SAML Service Provider.

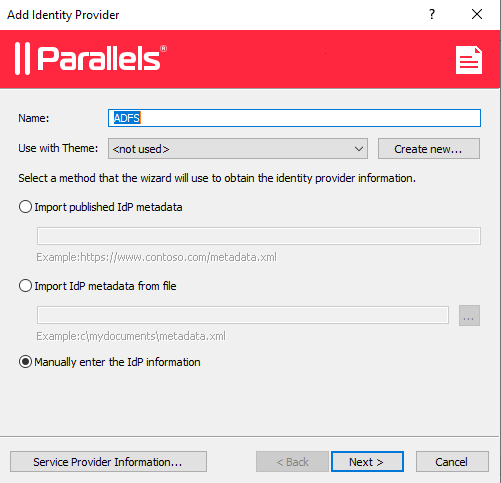

1. Add a New SAML Identity Provider

• Open RAS Console → Connection → SAML

• Click Add

• Provide a name (e.g. ADFS)
• Select Manually enter the IdP information


• Click Next

On the next page:

• Enter placeholder values (they will be replaced later via metadata import)


• Click Finish

Click Apply to save the configuration.

---

Export Parallels RAS Service Provider Metadata

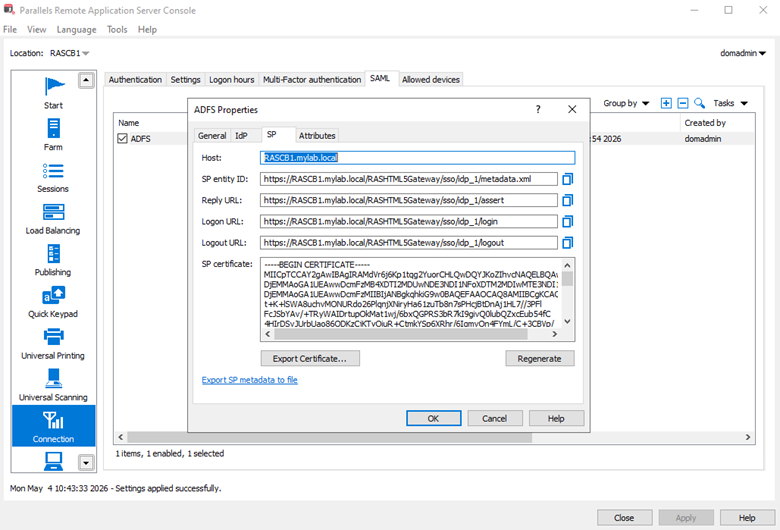

1. Configure SP Properties

• Open the newly created ADFS IdP properties

• Switch to the SP tab

• Specify the external FQDN or public IP of the RAS farm
  • This is the address users return to after authentication
  • Typically the public FQDN of the RAS Gateway or load balancer

2. Export SP Metadata

• Click Export Parallels RAS Service Provider Metadata to file

• Save the generated .xml file

This file will be imported into AD FS when creating the relying party trust.

---

Prepare Active Directory Federation Services (AD FS)

- This section is optional and is provided for completeness if AD FS has not been installed.

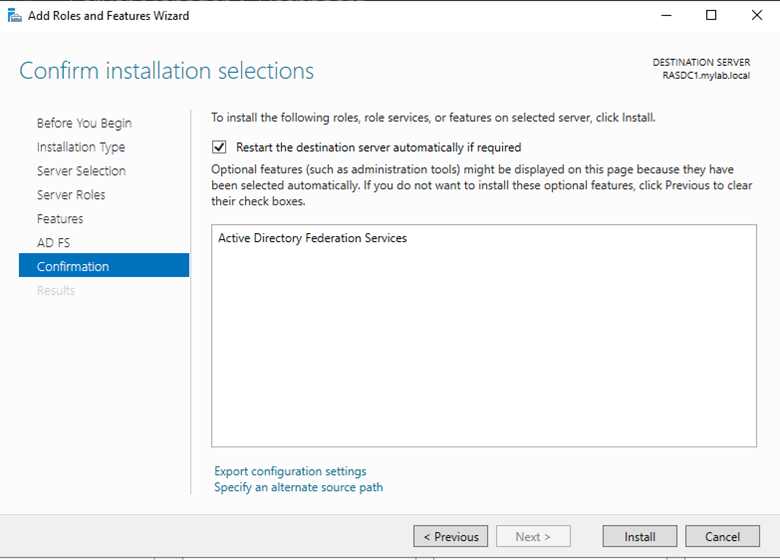

1. Install the AD FS Role

On the Windows Server designated for federation services:

• Open Server Manager

• Select Add Roles and Features
• Choose the target server
• Install the Active Directory Federation Services role



Refer Microsoft’s official documentation: Install the AD FS Role Service

---

Configure AD FS – Relying Party Trust

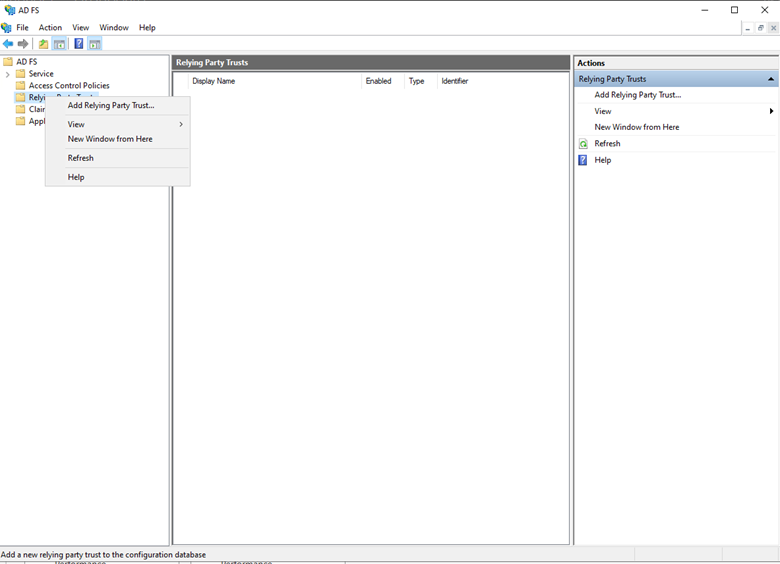

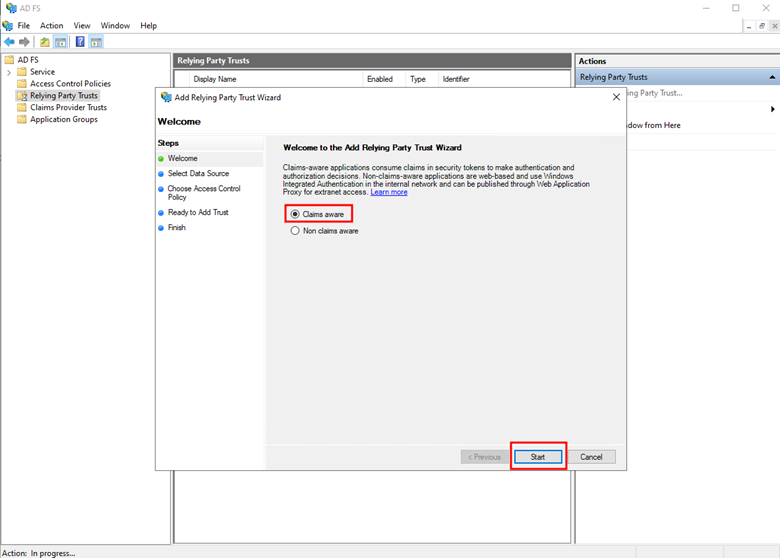

1. Create Relying Party Trust

• Open AD FS Management

• Right‑click Relying Party Trusts and select Add Relying Party Trust



• In the wizard:
  • Select Claims aware
  • Click Start

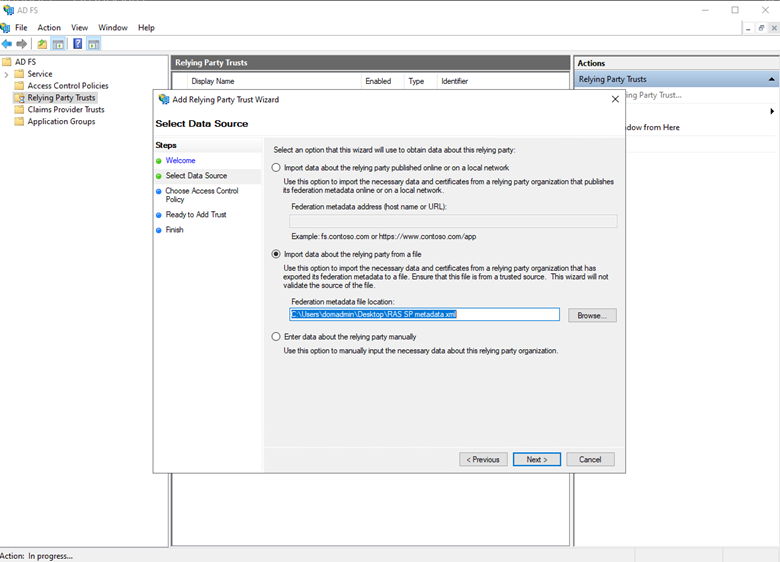

2. Import SP Metadata

• Select Import data about the relying party from a file in the Select Data Source section

• Browse to the exported SP metadata XML from section Export Parallels RAS Service Provider Metadata.



• Click Next

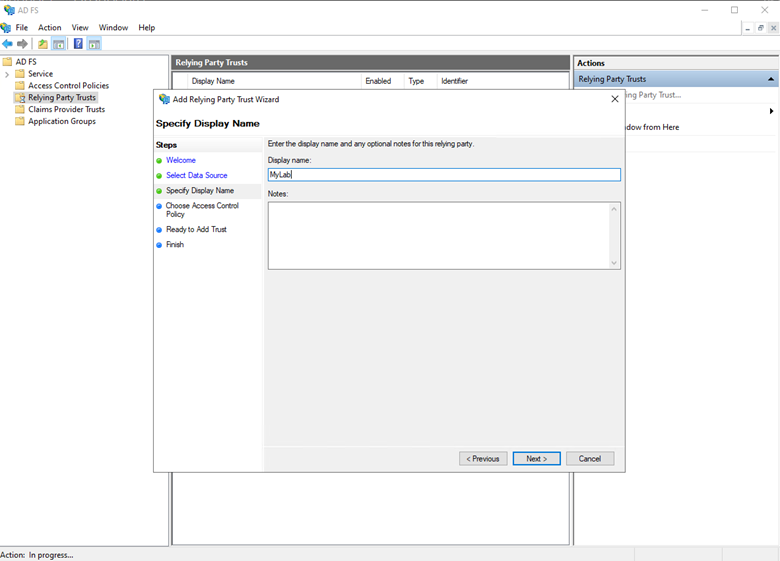

On the Specify Display Name section, set:

• Display Name (will be shown on the AD FS login page)

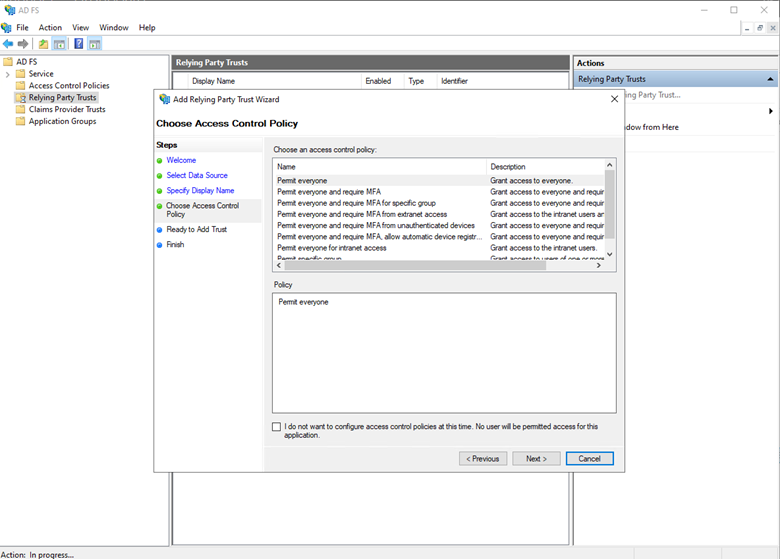

• On the Choose Access Control Policy section, choose an appropriate Access Control policy, then finish the wizard (select permit all if unsure).


• In the “Ready To Add Trust” Section, review the configuration, click Next, and then click Close on the Finish page.

---

Configure AD FS – Claim Issuance Policy

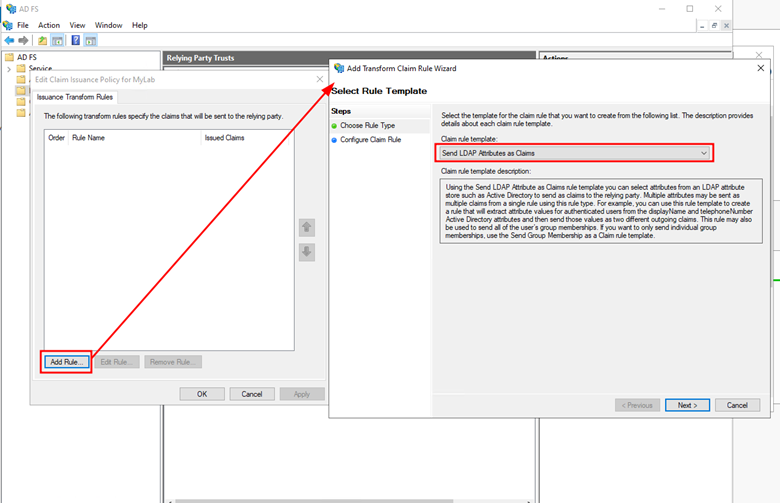

1. Add LDAP Claims Rule

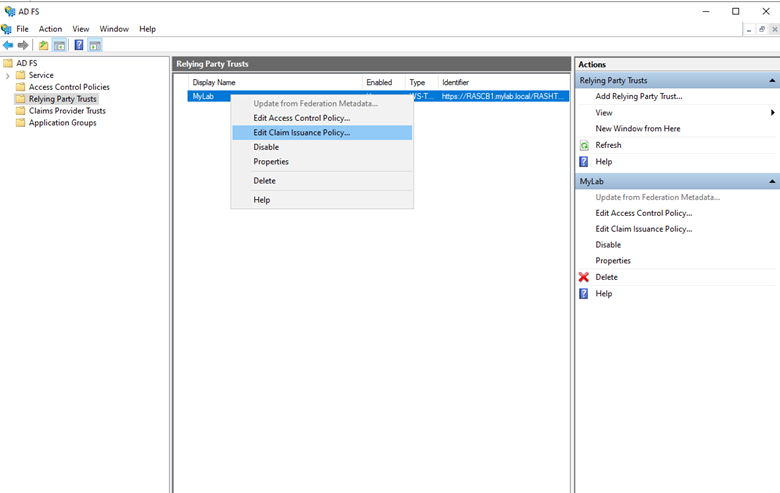

• Right‑click the new Relying Party Trust

• Select Edit Claim Issuance Policy



• Click Add Rule
• Choose Send LDAP Attributes as Claims


• Click on Next

---

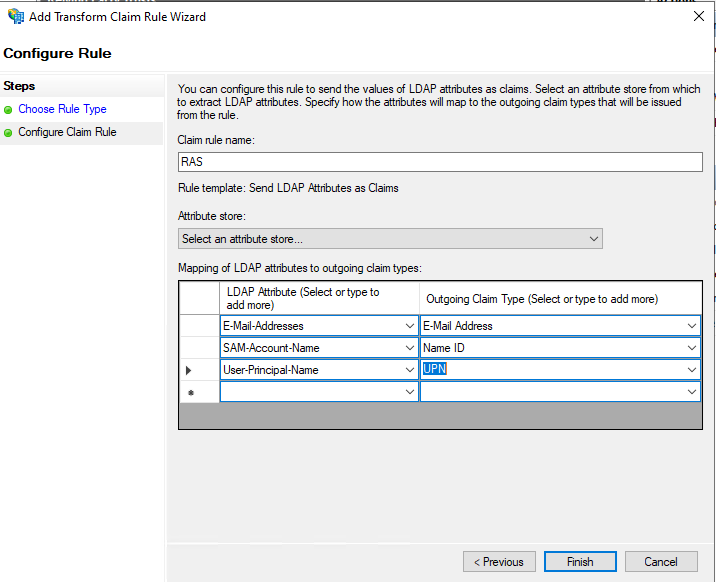

Configure AD FS – Map AD Attributes

In Configure Claim Rule:

• Attribute Store: Active Directory

• Map required attributes (example):

  • User Principal Name (UPN)
  • Email Address

• Click Finish, then Apply and OK.

---

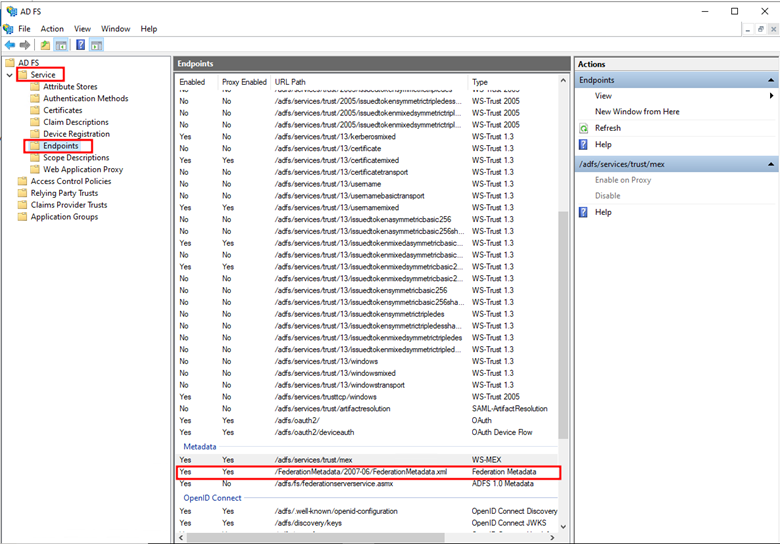

Retrieve AD FS Federation Metadata URL

In AD FS Management:

• Navigate to Service → Endpoints

• Locate the Federation Metadata endpoint

• Copy the URL



• Append the copied URL to the public FQDN of your AD FS server, for example:
  https://adfs.yourdomain.com/FederationMetadata/2007-06/FederationMetadata.xml
• We will use this URL in the next section below.

---

Completing Parallels RAS SAML Configuration

Open RAS Console → Connection → SAML

Edit the ADFS Identity Provider

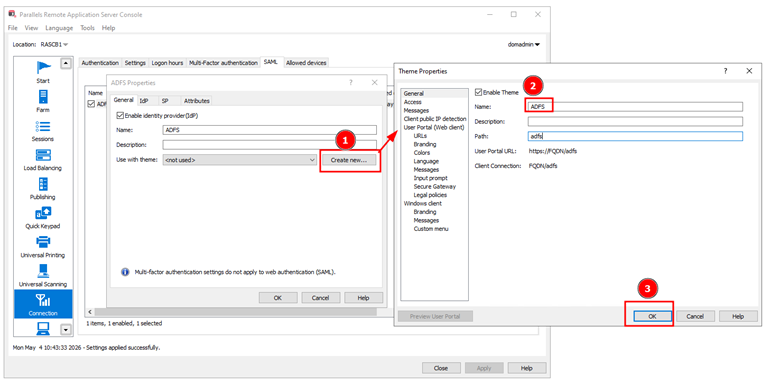

1. Configure the Login Theme

In the General tab:

• Select an existing theme or create a new custom theme

• Note the login URL format: https://publicFQDN/ThemeName

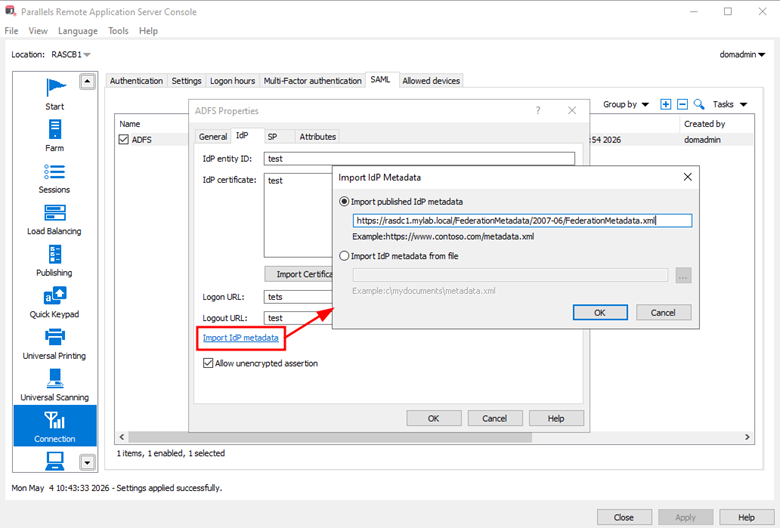

2. Import IdP Metadata

• Switch to the IdP tab

• Click Import IdP Metadata

• Select Import published IdP metadata

• Paste the Federation Metadata URL from Retrieve AD FS Federation Metadata URL

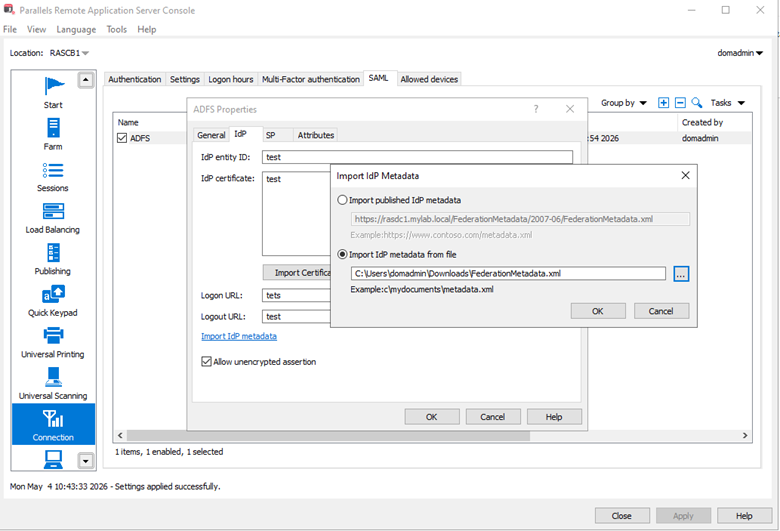

If URL import fails:

• Download the XML manually via browser by going to the metadata URL we got in Section Retrieve AD FS Federation Metadata URL and save as an xml file
• Import using Import IdP metadata from file

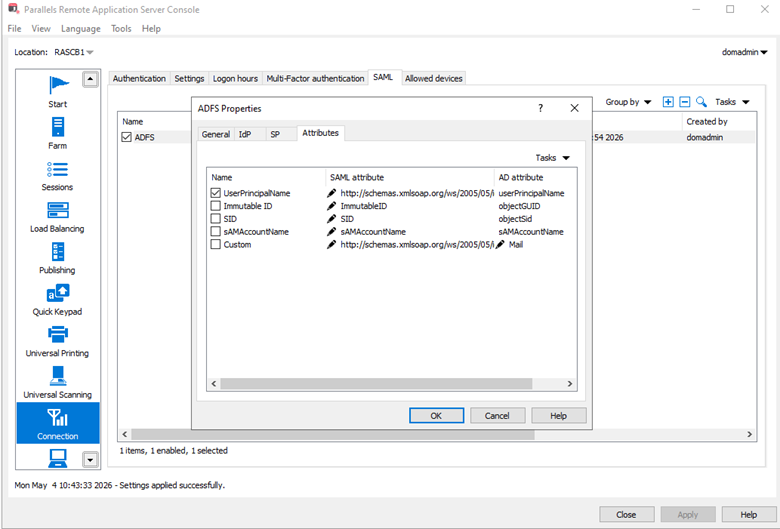

3. Configure Attributes Mapping

• In the Attributes tab, specify which SAML attributes will be used to identify users as configured in section Configure AD FS – Map AD Attributes

• At least one unique identifier (typically UPN) must be mapped.

• Email address and sAMAccountName can be optionally configured as well.


• Note:

  • To identify the correct SAML attributes for each Active Directory attribute, refer to AD FS Management → Service → Claim Descriptions.

---

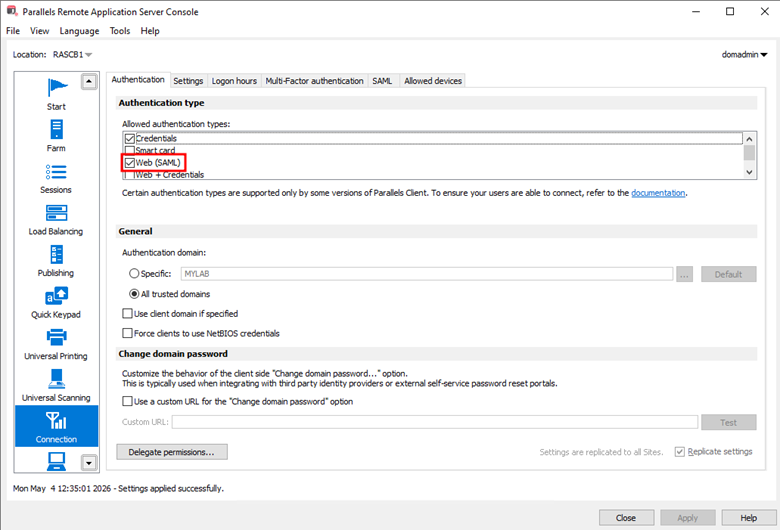

Enable SAML Authentication

As the last configuration step:

1. Go to RAS Console → Connection → Authentication

2. Enable Web (SAML) authentication

3. Click Apply



---

Validation

1. Test browser access to the SAML login URL, for example, https://publicFQDN/ThemeName

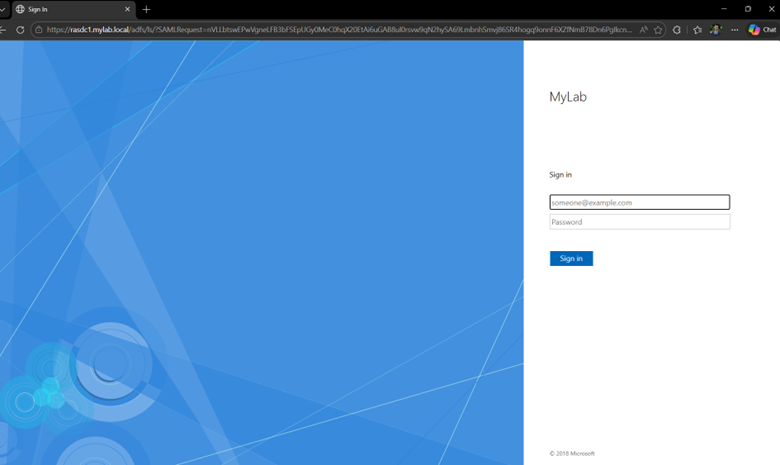

• You should be redirected to authenticate on AD FS similar to the following:



• After logging in, you should be redirected back to the Native client or the userportal, without needing to re-authenticate
